Block Bearings

500.00 - 5000.00 INR

Get a Price/Quote

Product Details:

Weight 0.65 kg
Thickness 35 mm
Usage Machinery
Material Carbon Steel
Ball Bearing Type Pillow Block Bearing
Roller Bearing Type Cylindrical
Structure Bearing Block with Set Screw
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Block Bearings Price And Quantity

Minimum Order Quantity 50 Piece
Price Range 500.00 - 5000.00 INR

Application Conveyors, Agricultural Machinery, Industrial Equipment
Housing Type Pillow Block
Lubrication Pre-lubricated with Grease
Suitable Shaft Type Round Shaft
Replacement Insert UC205
Housing Finish Corrosion Resistant Coating
Operating Temperature Range -20C to 120C
Mounting Type Two Bolt Flange

Block Bearings Product Specifications

Weight 0.65 kg
Structure Bearing Block with Set Screw
Load Capacity Dynamic - 15 kN, Static - 9 kN
Outside Diameter 62 mm
Ball Bearing Type Pillow Block Bearing
Inner Diameter 25 mm
Seals Type Double Sealed
Roller Bearing Type Cylindrical
Limiting Speed 8000 rpm
Material Carbon Steel
Number Of Rows Single Row
Thickness 35 mm
Color Green
Bore Size 25 mm
Usage Machinery

Application Conveyors, Agricultural Machinery, Industrial Equipment
Housing Type Pillow Block
Lubrication Pre-lubricated with Grease
Suitable Shaft Type Round Shaft
Replacement Insert UC205
Housing Finish Corrosion Resistant Coating
Operating Temperature Range -20C to 120C
Mounting Type Two Bolt Flange

Block Bearings Trade Information

Payment Terms Cash on Delivery (COD), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 1000 Piece Per Week
Delivery Time 10-15 Days
Main Export Market(s) Western Europe, Eastern Europe, Central America, Africa, Middle East, South America, Australia, Asia, North America
Main Domestic Market All India

Product Description

Block Bearings

We bring forth our clients a qualitative range of Block Bearings. These are one of the commonly used bearings and are designed for supporting the shafts where mounting surface is parallel with the shaft axis. We offer these in varied specifications as per the clients requirements and at competitive market prices.

Engineered for Enduring Performance

These block bearings are designed with a cylindrical roller and a single row structure, offering robust support and high load capacity for a wide range of machinery. Their corrosion-resistant coating stands up to harsh operating conditions, ensuring sustained performance even in demanding industrial or agricultural environments.

Versatile Applications and Easy Installation

Suitable for round shafts with a 25 mm bore size, these bearings are ideal for use in conveyors, agricultural machinery, and general industrial equipment. The two bolt flange design, complemented by a pillow block housing, allows for secure, straightforward mounting and reliable operation.

FAQ's of Block Bearings:

Q: How do I install the Two Bolt Flange Block Bearing with a set screw?

A: To install, align the bearing on the chosen shaft and affix it to the mounting surface using the two bolt holes. Once the unit is in place, secure the bearing to the shaft by tightening the set screw, ensuring a stable and reliable fit.

Q: What are the benefits of the corrosion resistant coating on the housing?

A: The corrosion resistant coating extends the bearing's lifespan by protecting it from moisture, chemicals, and other environmental factors, making it especially suitable for use in agricultural, industrial, and outdoor applications.

Q: When should the replacement insert UC205 be used?

A: Replace the UC205 bearing insert when you notice excessive wear, abnormal noise, or diminished performance. Doing so maintains optimum functionality without needing to replace the entire housing, saving time and cost.

Q: Where is this block bearing commonly used?

A: These bearings are widely used in machinery for conveyors, agricultural implements, and various types of industrial equipment, particularly where round shafts and robust performance are required.

Q: What is the recommended operating temperature range for this bearing?

A: The bearing is effective in temperatures ranging from -20C to 120C, making it suitable for multiple industrial environments and climate conditions.

Q: How is the bearing lubricated and maintained?

A: Each bearing is pre-lubricated with grease and features double seals for longevity. For most applications, routine greasing is not required, but periodic inspections and relubrication, if necessary, will ensure continued smooth operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ball Bearings' category

Centralized Lubrication Type Cam Followers Price : 500 INR/Piece Minimum Order Quantity : 2 Number Of Rows : Other, 2 Bore Size : 10 mm to 40 mm Material : Highgrade Alloy Steel Thickness : 12 mm to 36 mm Limiting Speed : 7000 RPM Structure : Centralized Lubrication Type Outside Diameter : 22 mm to 90 mm Inner Diameter : 10 mm to 40 mm Seals Type : Contact Seals Weight : 0.2 kg to 2.5 kg Load Capacity : 1200 kg to 4800 kg Ball Bearing Type : Other, Double Row Ball Bearing Roller Bearing Type : Other, Needle Roller Bearing Bushes Type : Other, Graphite Bronze Bush

Send Inquiry

Machined Type Needle Roller Bearings Price : 150 INR/Piece Minimum Order Quantity : 10 Number Of Rows : Other, Single Bore Size : 12 mm Material : High Carbon Chromium Steel Thickness : 16 mm Limiting Speed : 18000 RPM Structure : Single Row with Cage Outside Diameter : 19 mm Inner Diameter : 12 mm Seals Type : Open/Sealed Weight : 28 g Load Capacity : 7050 N Ball Bearing Type : Other, Needle Roller Bearing Type : Other, Machined Type Needle Roller

Send Inquiry

Linear Ball Spline G Series Price : 400 INR/Piece Minimum Order Quantity : 2 Number Of Rows : Other, 3 Bore Size : 12 mm Material : Alloy Steel Thickness : 25 mm Limiting Speed : 4000 rpm Structure : With Grooved Shaft and Slotted Outer Cylinder Outside Diameter : 21 mm Inner Diameter : 12 mm Seals Type : Rubber Sealed Weight : 0.09 kg Load Capacity : 800 N Ball Bearing Type : Other, Linear Ball Spline Bushes Type : Other, Cylindrical

Send Inquiry

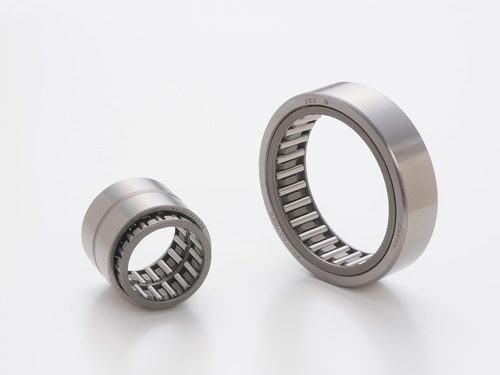

Optimum Finish Needle Roller Bearings with Separable Cage Price : 150 INR/Piece Minimum Order Quantity : 10 Number Of Rows : Other, Single and Double Row options available Bore Size : 10 mm to 80 mm Material : Highquality bearing steel Thickness : 12 mm to 25 mm Millimeter (mm) Limiting Speed : Up to 18000 RPM (varies by size) RPM Structure : Separable with cage Outside Diameter : 22 mm to 100 mm Millimeter (mm) Inner Diameter : 10 mm to 80 mm Millimeter (mm) Seals Type : Open/Without Seal Weight : Varies by size (e.g., 40g to 1.7kg) Kilograms (kg) Roller Bearing Type : Other, Needle Roller Bearing Bushes Type : Other, Separable Cage
